Brand Omron
Series NX1P2
SKU NX1P2-PTC01
Price From $1,090.50
Omron

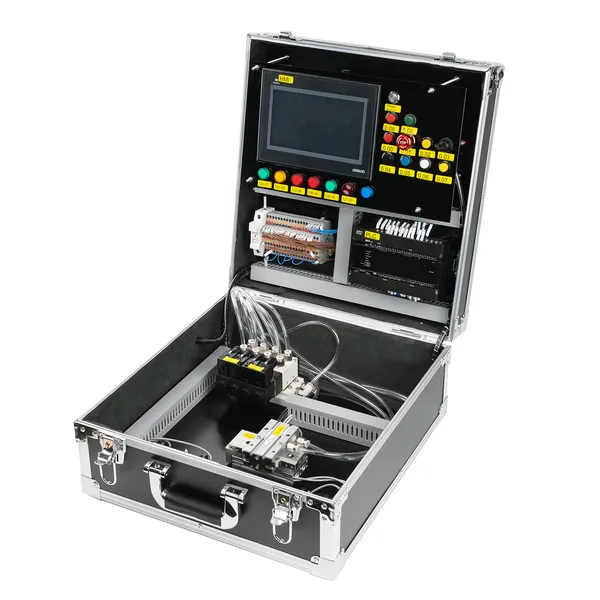

Omron NX1P2 Pneumatic Component Timing Control Equipment
Omron NX1P2 pneumatic timing trainer with Sysmac platform integration for advanced sequencing and component coordination.
- Omron NX1P2-1040DT machine automation controller
- Three configurations: PTC01, PTC02, PTC03
- Multi-level timing adjustment with accurate time control
- Includes HMI, cylinders, sensors, solenoid valves, and air compressor
- 24V/1.5A power supply with pneumatic accessories
- Compatible with Sysmac Studio for unified development
- Modular structure for disassembly, assembly, and mode switching
- Suitable for teaching and practical training
Who Is This For
Universities and enterprise training centers teaching Omron NX1P2 / Sysmac Studio platform with pneumatic sequencing and timing control.
Technical Specifications
| PLC Model | Omron NX1P2-1040DT |
|---|---|
| Configurations | NX1P2-PTC01, PTC02, PTC03 |
| PTC01 Components | PLC, HMI, TN10X30S, TN10X70S, sensors, solenoid valves |
| PTC02 Adds | HLS12X50S, MHY2-20D cylinders |
| PTC03 Components | All cylinders: TN10X30S, TN10X70S, HLS12X50S, MHY2-20D |
| Power Supply | 24V/1.5A |
| Air Compressor | Included |
| Dimensions | 420 x 400 x 170 mm |
| Weight | 10.9 kg |
| Pricing | PTC01 ($1,090.50), PTC02 ($1,112.31), PTC03 ($1,134.12) |
| Software | Sysmac Studio (not included) |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
How is this different from the Omron CP2E pneumatic kit?
This kit uses the more advanced NX1P2-1040DT machine automation controller (Sysmac platform) instead of the CP2E. The NX1P2 supports unified PLC and motion control development through Sysmac Studio.
Which configuration is most popular for teaching?
PTC03 ($1,134.12) is the most complete configuration with all four cylinder types, providing the widest variety of sequencing exercises. PTC01 ($1,090.50) is sufficient for basic sequencing training.
Does the kit include the Sysmac Studio software?
No. Sysmac Studio is purchased separately from Omron. We can recommend the appropriate edition for your curriculum.
