Brand Omron
Series CP2E
SKU CP2E-PTC01
Price From $1,025.77
Omron

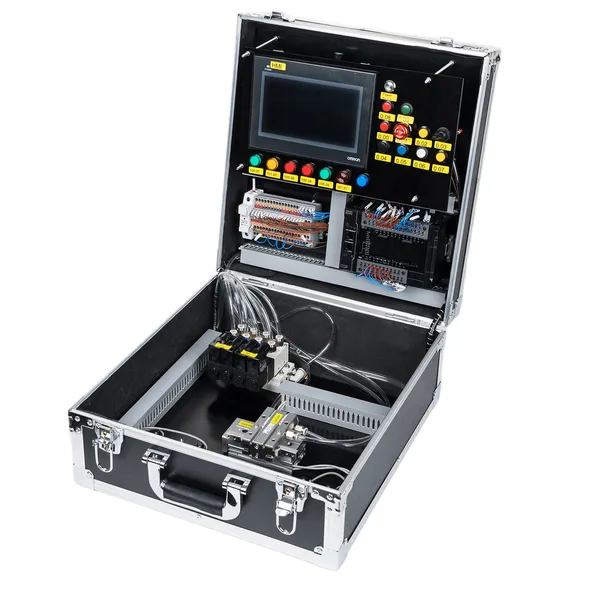

Omron CP2E Pneumatic Component Timing Control Equipment
Omron CP2E pneumatic timing trainer with multi-level timing adjustment and modular component coordination.
- Omron CP2E-N40DT-D core PLC controller
- Three configurations: PTC01, PTC02, PTC03
- Multi-level timing adjustment with accurate time control
- Includes cylinders, sensors, solenoid valves, and air compressor
- 24V/1.5A power supply with pneumatic accessories
- Compatible with pneumatic components of different specifications
- Modular structure for disassembly, assembly, and mode switching
- Suitable for teaching and practical training
Who Is This For
Vocational schools and training centers teaching Omron CP2E PLC programming with pneumatic sequencing and timing control.
Technical Specifications
| PLC Model | Omron CP2E-N40DT-D |
|---|---|
| Configurations | CP2E-PTC01, PTC02, PTC03 |
| PTC01 Components | PLC, HMI, TN10X30S, TN10X70S, sensors, solenoid valves |
| PTC02/03 Adds | HLS12X50S, MHY2-20D cylinders |
| Power Supply | 24V/1.5A |
| Air Compressor | Included |
| Dimensions | 420 x 400 x 170 mm |
| Weight | 10.9 kg |
| Pricing | PTC01 ($1,025.77), PTC02 ($1,047.60), PTC03 ($1,091.25) |
| Software | CX-Programmer / Sysmac Studio (not included) |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
Which configuration should I choose?
PTC01 is the base configuration with two cylinder types (TN10X30S and TN10X70S). PTC02 swaps in HLS12X50S and MHY2-20D cylinders. PTC03 includes all four cylinder types for the most comprehensive training.
Is an air compressor included?
Yes. All three configurations include an air compressor and pneumatic accessories.
What software do I need for the Omron CP2E?
Omron CX-Programmer or Sysmac Studio. We can recommend the appropriate software based on your curriculum.
