Brand Omron
Series CP2E-N
SKU OMRON-CP2E-VFD-KIT-01
Price From $1,345.46
Omron

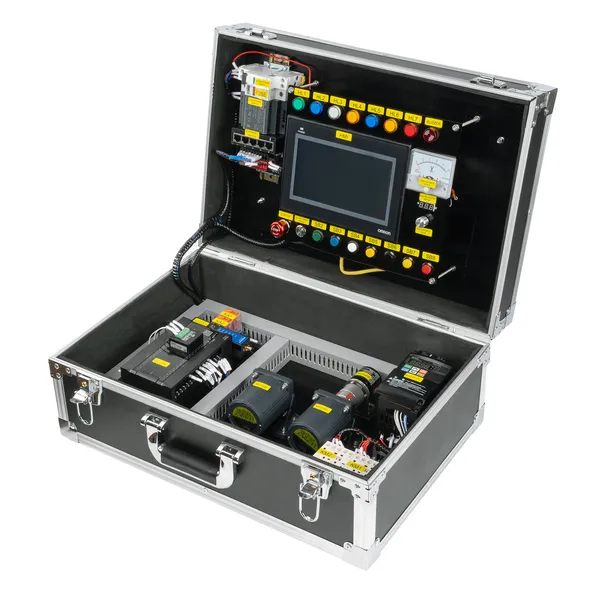

Omron CP2E PLC + VFD Dual-Motor / Single-Motor Hands-On Training Kit
Omron CP2E and 3G3MX2 VFD trainer with dual-motor capability, 4G IoT module, and full industrial communication practice.
- Omron CP2E-N40DT-D-ECM PLC controller
- Omron NB7W 7-inch HMI
- Omron 3G3MX2 VFD inverter
- CP1W-MAB221 analog I/O module (4AI/2AO)
- CP1W-CIF11 RS-485 communication module
- Three-phase motors with encoder
- Industrial switch and optional 4G/Wi-Fi IoT module
- Modbus RTU and Ethernet communication practice
- Analog speed control (0-10V / 0-20mA / 4-20mA)
Who Is This For
Vocational schools, university automation labs, and enterprise training centers teaching Omron CP2E PLC programming, 3G3MX2 VFD operation, and IoT-enabled industrial control.
Technical Specifications
| PLC Model | Omron CP2E-N40DT-D-ECM |
|---|---|
| HMI | Omron NB7W (7-inch) |
| VFD | Omron 3G3MX2 |
| Analog Module | CP1W-MAB221 (4AI/2AO) |
| RS-485 Module | CP1W-CIF11 |
| Motors | Three-phase asynchronous (single or dual) |
| Encoder | Included |
| IoT | 4G/Wi-Fi module (KIT-01 only) |
| Communication | Modbus RTU, Ethernet |
| Speed Control | 0-10V / 0-20mA / 4-20mA |
| Dimensions | 500 x 340 x 200 mm |
| Weight | 11-12.5 kg |
| Configurations | KIT-01 ($1,792.64), KIT-02 ($1,460.49), KIT-03 ($1,345.46) |
| Software | CX-Programmer / Sysmac Studio (not included) |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
What is the difference between the three KIT configurations?
KIT-01 ($1,792.64) includes dual motors, industrial switch, 4G IoT module, relays and contactors. KIT-02 ($1,460.49) includes dual motors without the IoT module. KIT-03 ($1,345.46) is a single-motor configuration without IoT, relays, or contactors.
What communication protocols can I practice?
Modbus RTU via the CP1W-CIF11 RS-485 interface and Ethernet via the PLC built-in port. The kit also supports analog signal-based speed control (0-10V / 0-20mA / 4-20mA).
Is the 3G3MX2 VFD suitable for industrial use?
Yes. The Omron 3G3MX2 is a fully industrial-grade compact inverter widely used in real-world manufacturing applications. The skills learned transfer directly to industrial settings.
