Brand Siemens
Series S7-1215C
SKU Two-Axis-S7-1215C-V90-Servo-Stepper-01
Price From $1,522.19
Siemens

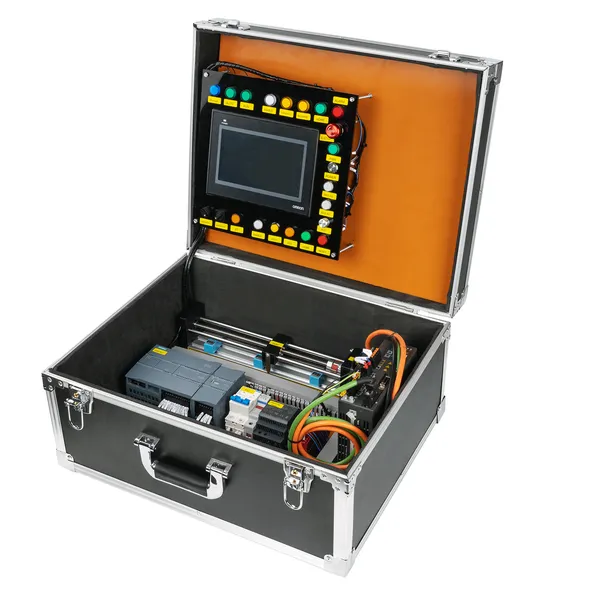

Siemens 1215C & V90 Servo & Stepper Motor 2-Axis Control Training Kit
Dual control architecture trainer combining V90 servo (PROFINET) and stepper motor (PTO pulse) for comprehensive 2-axis motion training.
- Siemens CPU 1215C DC/DC/DC with SM 1221 expansion
- SINAMICS V90 PN servo (6SL3210-5FB10-4UF1 + 1FL6034-2AF21-1AA1)
- PNP stepper motor with driver
- Dual control: PTO pulse for stepper + PROFINET for servo
- Optional SIMATIC KTP700 Basic PN 7-inch HMI (-02 config)
- Dual operation modes: physical buttons + touchscreen
- Full safety: emergency stop, hardware limit, axis enable, fault interlock
- Plug-and-play with pre-completed wiring
Who Is This For
Advanced automation programs at universities and technical colleges teaching servo motion control, PROFINET drive integration, and multi-axis coordination with industrial-grade Siemens components.
Technical Specifications
| PLC Model | Siemens CPU 1215C DC/DC/DC |
|---|---|
| I/O Expansion | SM 1221 |
| Servo Drive | SINAMICS V90 PN (6SL3210-5FB10-4UF1) |
| Servo Motor | 1FL6034-2AF21-1AA1 |
| Stepper Motor | PNP type with driver |
| HMI | SIMATIC KTP700 Basic PN (configuration -02 only) |
| Servo Communication | PROFINET |
| Stepper Control | PTO pulse |
| Safety | E-stop, hardware limits, axis enable, fault interlock |
| Dimensions | 500 x 400 x 250 mm |
| Weight | 15-16 kg |
| Configurations | -01 ($1,522.19), -02 with HMI ($2,069.74) |
| Software | TIA Portal with Motion Control (not included) |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
What is the difference between the -01 and -02 configurations?
The -01 ($1,522.19) is the standard configuration without HMI - ideal for programming-focused training. The -02 ($2,069.74) adds a SIMATIC KTP700 Basic PN 7-inch touchscreen for HMI integration and visual operation.
Can I learn both servo and stepper control?
Yes. The kit is specifically designed with dual control architecture: PTO pulse output for the stepper motor and PROFINET bus for the V90 servo drive. This is ideal for teaching the differences and trade-offs between the two control methods.
What safety features are included?
Emergency stop, hardware limits, axis enable, and fault interlock - complying with industrial safety standards.
