Brand Mitsubishi
Series FX5U
SKU FX5U-PTC01
Price From $1,134.28
Mitsubishi

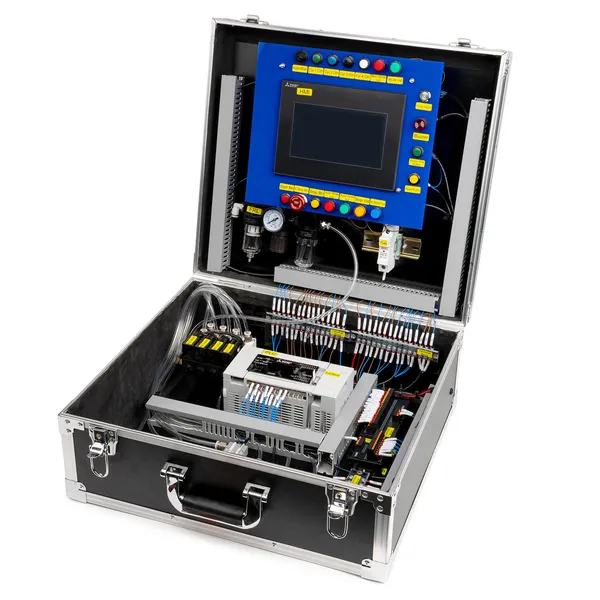

FX5U Pneumatic Control System
Pneumatic timing control trainer built on Mitsubishi FX5U.
- Mitsubishi FX5U PLC core
- Expansion module and HMI included
- Pneumatic cylinders (TN10X30S, TN10X70S, HLS12X50S, MHY2-20D)
- Sensors and solenoid valves
- 24V/1.5A power supply with air compressor
- Three configurations: PTC01, PTC02, PTC03
Who Is This For
Students practicing pneumatic sequencing and timing control with Mitsubishi PLCs.
Technical Specifications
| PLC Model | Mitsubishi FX5U |
|---|---|
| Configurations | FX5U-PTC01, PTC02, PTC03 |
| PTC01 Cylinders | TN10X30S, TN10X70S |
| PTC02 Cylinders | TN10X30S, HLS12X50S, MHY2-20D |
| PTC03 Cylinders | TN10X30S, TN10X70S, HLS12X50S, MHY2-20D |
| HMI | Included |
| Pneumatics | Cylinders, solenoid valves, sensors |
| Power Supply | 24V/1.5A |
| Air Compressor | Included |
| Dimensions | 420 x 400 x 170 mm |
| Weight | 10.9 kg |
| Pricing | PTC01 ($1,134.28), PTC02 ($1,230.71), PTC03 ($1,262.86) |
| Software | GX Works 3 (not included) |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
Is this compatible with SMC or Festo components?
The kit uses standard pneumatic fittings. Additional SMC or Festo components can be integrated.
