Brand Motor Control
Series Motor Control
SKU PT-L1
Price From $27.09
Motor Control

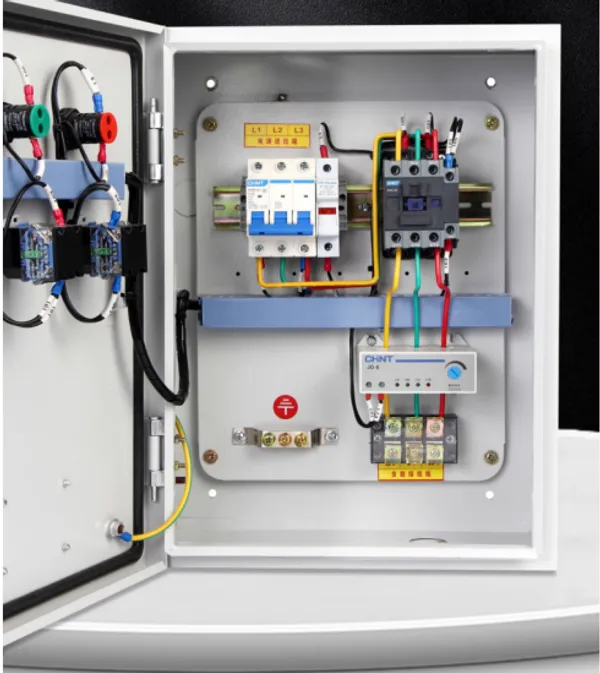

DOL Motor Starter Control Panel
Direct-on-line motor starter panel for compact motor control training.
- ZT-J series: with motor protector (overload, short-circuit, phase loss protection)
- PT-QL series: with motor protector (overload, short-circuit, phase loss)
- PT-QS series: with thermal relay (overload protection)
- PT-L series: basic protection, AC220V/AC380V
- CHNT electrical components
- Power range: 0.75kW to 22kW
Who Is This For
Beginners learning basic motor starting circuits and safety protection.
Technical Specifications
| Models | ZT-J / PT-QL / PT-QS1 / PT-QS2 / PT-L1 / PT-L2 |
|---|---|
| Voltage | AC220V (2PH) or AC380V (3PH) |
| Power Range | 0.75kW - 22kW |
| Protection | Overload, short-circuit, phase loss (model dependent) |
| Components | CHNT electrical components |
| Size (small) | W250 x H300 x D140 mm |
| Size (large) | W300 x H400 x D160 mm |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
What motor size can this handle?
Designed for small motors up to 1.5kW for training purposes.
