Brand Allen-Bradley
Series Micro850
SKU Micro850-PTC01
Price From $1,351.32
Allen-Bradley

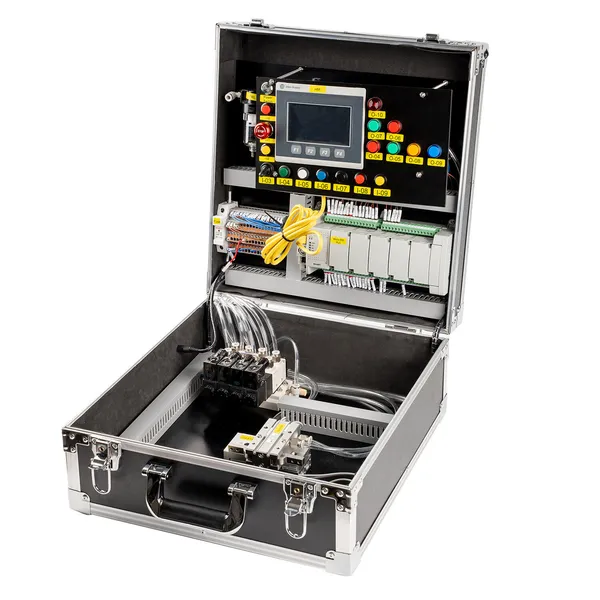

AB Micro850 Pneumatic Component Timing Control Equipment
Modular AB pneumatic trainer for timing, cylinders, and practical control exercises.
- AB Micro850 PLC core
- Three configurations: PTC01, PTC02, PTC03
- Includes PLC, HMI, and pneumatic accessories
- Pneumatic cylinders (TN10X30S, TN10X70S, HLS12X50S, MHY2-20D)
- Sensors and solenoid valves
- 24V/1.5A power supply with air compressor
- Contains lithium battery (PI967)
Who Is This For
Progressive pneumatic training from beginner to advanced with Allen-Bradley controls.
Technical Specifications
| PLC Model | AB Micro850 |
|---|---|
| Configurations | Micro850-PTC01, PTC02, PTC03 |
| PTC01 Cylinders | TN10X30S, TN10X70S |
| PTC02 Cylinders | TN10X30S, HLS12X50S, MHY2-20D |
| PTC03 Cylinders | TN10X30S, TN10X70S, HLS12X50S, MHY2-20D |
| HMI | Included |
| Pneumatics | Cylinders, valves, sensors |
| Power Supply | 24V/1.5A |
| Air Compressor | Included |
| Dimensions | 420 x 400 x 170 mm |
| Weight | 10.9 kg |
| Pricing | PTC01 ($1,351.32), PTC02 ($1,373.15), PTC03 ($1,416.80) |
| Battery | Lithium battery installed (PI967) |
| Software | CCW (free) |
Complete hardware setup, documentation, and support for classroom or training-room use.
More Buying Information
Use these pages to compare related products, shipping details, and customization options.
Frequently Asked Questions
Common questions about this product.
Which configuration should I choose?
PTC01 for basic pneumatic, PTC02 adds HMI, PTC03 is full-featured for advanced training.
